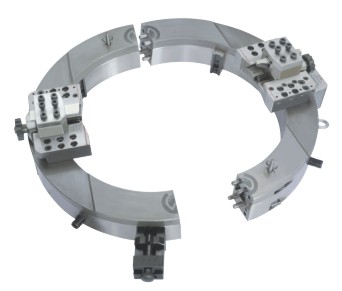

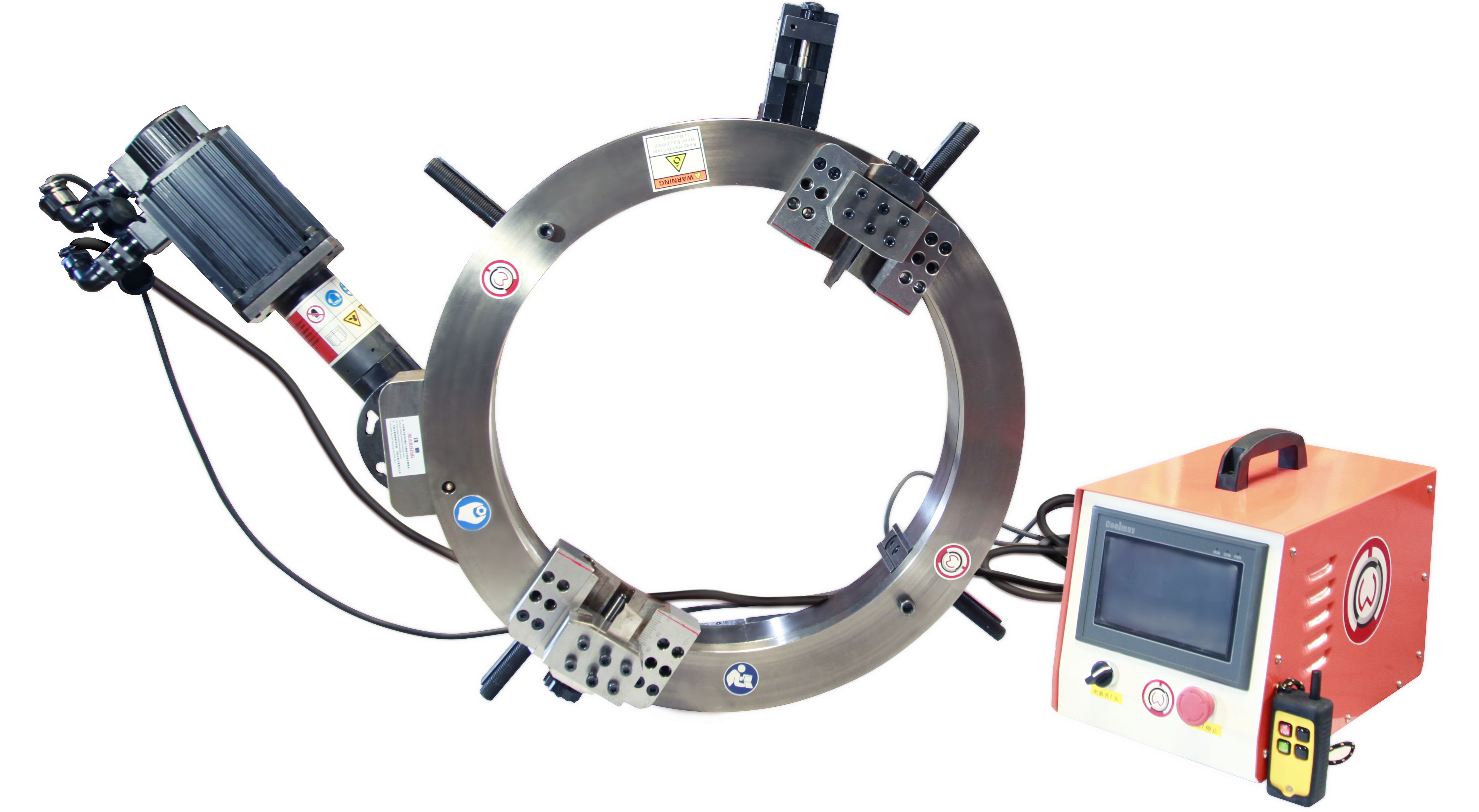

外钳式电动管子切割坡口机坡口参数
| 规格型号 Model | 加工范围（ID-OD）Working Range（ID-OD） | 切割坡口壁厚Wall thicknessp | 刀盘转速Rotation Speed | |
| OCS-89 | Ø25-89 | 3/4”-3” | ≤35 | 42r/min |
| OCS-168 | Ø50-168 | 2”-6” | ≤35 | 18r/min |
| OCS-230 | Ø80-230 | 3”-8” | ≤35 | 15r/min |
| OCS-275 | Ø125-275 | 5”-10” | ≤35 | 14r/min |
| OCS-305 | Ø150-305 | 6”-10” | ≤35 | 13r/min |
| OCS-325 | Ø168-325 | 6”-12” | ≤35 | 13r/min |
| OCS-377 | Ø219-377 | 8”-14” | ≤35 | 12r/min |
| OCS-426 | Ø273-426 | 10”-16” | ≤35 | 12r/min |
| OCS-457 | Ø300-457 | 12”-18” | ≤35 | 12r/min |
| OCS-508 | Ø355-508 | 14”-20” | ≤35 | 12r/min |
| OCS-560 | Ø400-560 | 16”-22” | ≤35 | 12r/min |
| OCS-610 | Ø457-610 | 18”-24” | ≤35 | 11r/min |
| OCS-630 | Ø480-630 | 20”-24” | ≤35 | 11r/min |
| OCS-660 | Ø508-660 | 20”-26” | ≤35 | 11r/min |
| OCS-715 | Ø560-715 | 22”-28” | ≤35 | 11r/min |
| OCS-762 | Ø600-762 | 24”-30” | ≤35 | 11r/min |
| OCS-830 | Ø660-813 | 26”-32” | ≤35 | 10r/min |
| OCS-914 | Ø762-914 | 30”-36” | ≤35 | 10r/min |
| OCS-1066 | Ø914-1066 | 36”-42” | ≤35 | 10r/min |
| OCS-1230 | Ø1066-1230 | 42”-48” | ≤35 | 10r/min |
