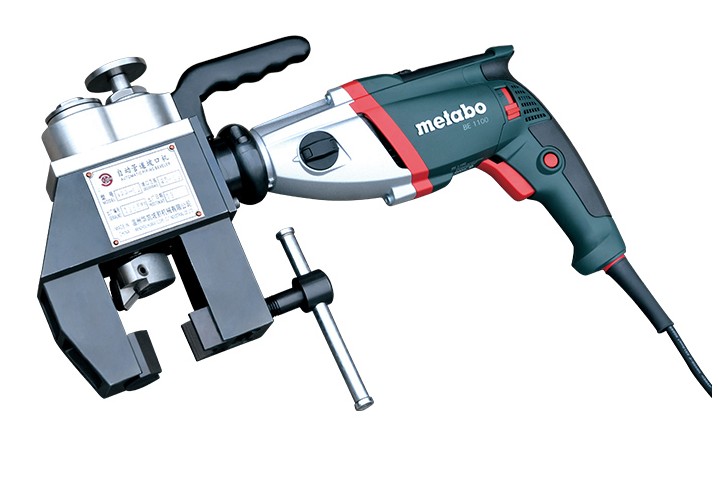

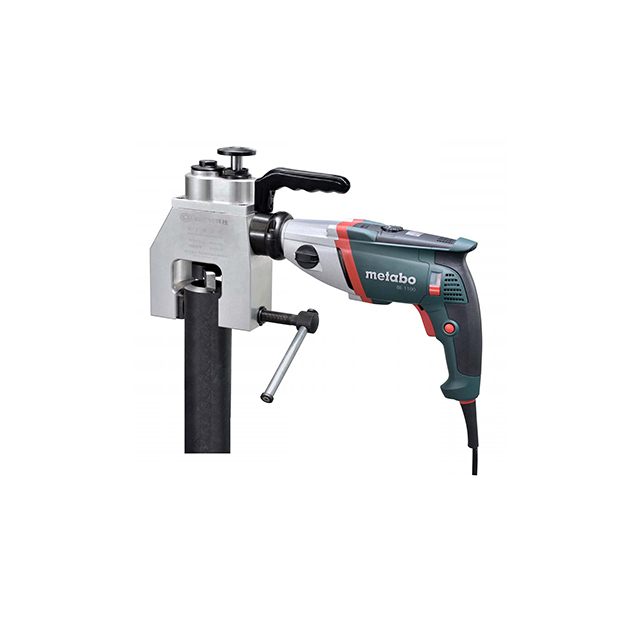

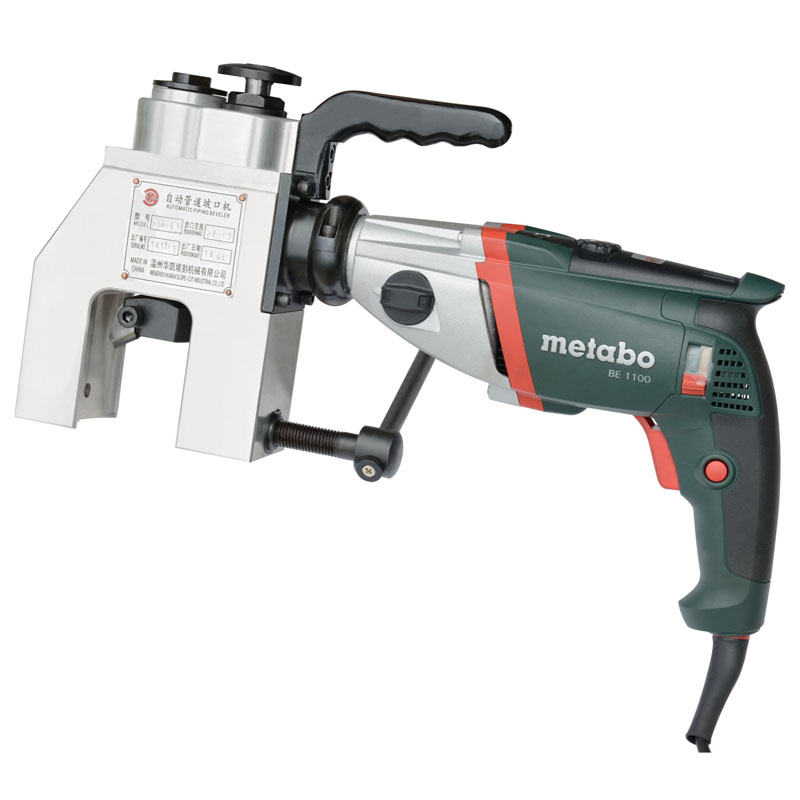

OD mounted portable automatic feeding pipe beveling machine
Ovier view:
External clip-on automatic groove machine series adopts Metabo machine imported from Germany, superior quality, suitable for power generation,
pipe installation, chemical industry, shipbuilding, etc used pressure pipeline model set, is mainly used for the early stage of the groove tube type
equipment manufacture and no workspace limits of pipeline maintenance work on site.
Features:
OD-Mounted
Light weight
Ajustable speed
Compact design, good rigidity
Tool feed/back automatically
Original German METABO motor
Ingenious centering device, easy for process various of pipe size
Elaborate the infinite gear centering device, simple operation can be convenient to deal with a variety of model pipe processing;
Using transmission structure similar to that of the special machine and motor, the overall performance and reliable;
Automatic cutting structure design, the operation is flexible and simple.
Specifications:
Model | Working Range (OD mm) | Wall thickness | Clamp Size (OD mm) |
ISO-63C | 28-63 | ≤12mm | 28, 32, 42, 45, 54, 57, 60, 63 |
ISO-76C | 42-76 | 42, 45, 54, 57, 60, 63, 68, 76 | |
ISO-89C | 63-89 | 63, 68, 76, 83, 89 | |
ISO-114C | 76-114 | 76, 83, 89, 95, 102, 108, 114 |

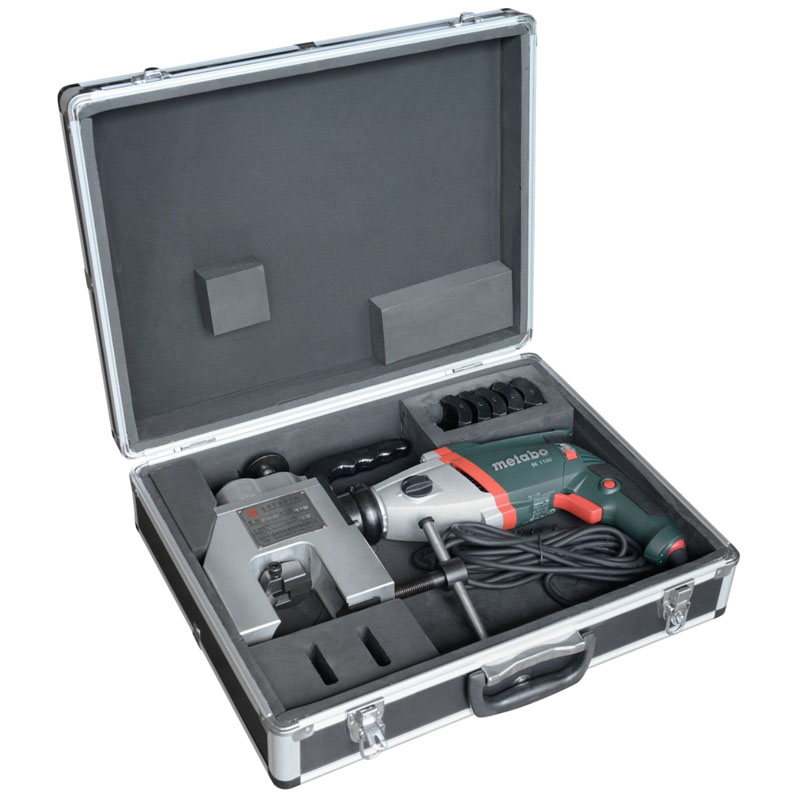

ISO Machine configuration
1、Calibration clamping system,
2、Customized storage box,
3、Operating tools,
4、Product specification,
5、Qualified inspection report。
