Bridge of beveling machine guide rail:

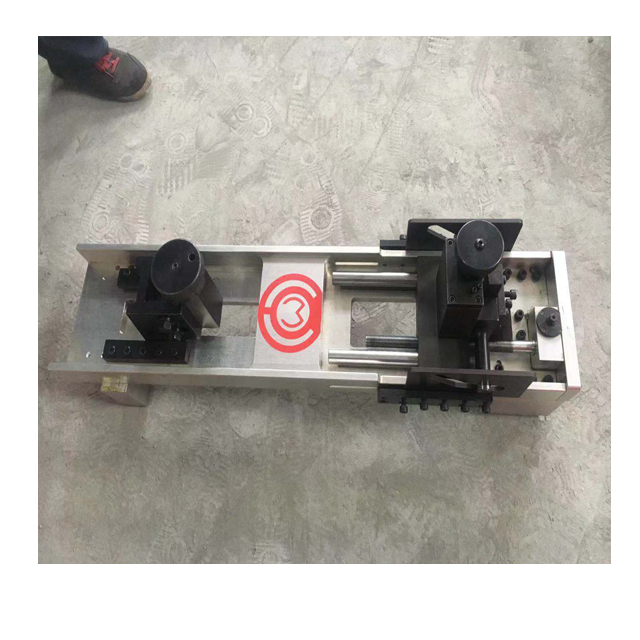

The bridge tool slide accessory is used for facing,counterboring,inside beveling and beveling an open pipe end,especially for the heavy wall thickness pipe.

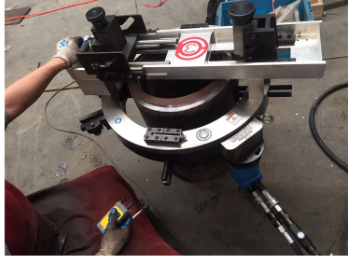

The slide mounted onto one OD-mounted machine and " bridege" the end of the pipe.
the bridge tool slide uses a single point tool and is available with beveling templates for various contours.
Bridge tool Features:
1、Bridge rail assembly in electric, pneumatic or hydraulic drive pipe groove cutting machine, groove processing, each model can be applied to three different types of pipe groove cutting machine
2、It USES high strength design, use of single point tool and groove module, completed many sample groove processing
3、Crevasse no wall thickness limit, material including: carbon steel, alloy steel, stainless steel and other metal materials.
4、Feeding system: automatic feed, feed precision.
5、Assembly in boring/POE module, inner slope module bevel Angle can be adjusted.
6、Feeding wheel and the turbine worm hidden design, makes the operation more secure, more perfect shape.
Spcification:
Model | working range | wall thickness | Rotation Speed | ||
mm | inch | Normal | Heavy Duty |
275 | 125-275 | 5"-10" | ≦30mm | ≦100mm | 13r/min |
305 | 150-305 | 6"-10" | ≦30mm | ≦100mm | 13r/min |
325 | 168-325 | 6"-12" | ≦30mm | ≦100mm | 12r/min |
377 | 219-377 | 8"-14" | ≦30mm | ≦100mm | 12r/min |
426 | 273-426 | 10"-16" | ≦30mm | ≦100mm | 12r/min |
457 | 300-457 | 12"-18" | ≦30mm | ≦100mm | 12r/min |
508 | 355-508 | 14"-20" | ≦30mm | ≦100mm | 12r/min |
560 | 400-560 | 16"-22" | ≦30mm | ≦100mm | 12r/min |
610 | 457-610 | 18"-24" | ≦30mm | ≦100mm | 12r/min |
630 | 480-630 | 20"-24" | ≦30mm | ≦100mm | 11r/min |
660 | 508-660 | 20"-26" | ≦30mm | ≦100mm | 11r/min |
715 | 560-715 | 22"-28" | ≦30mm | ≦100mm | 11r/min |
762 | 600-762 | 24"-30" | ≦30mm | ≦100mm | 11r/min |
830 | 660-813 | 26"-32" | ≦30mm | ≦100mm | 10r/min |
914 | 762-914 | 30"-36" | ≦30mm | ≦100mm | 10r/min |
1066 | 914-1066 | 36"-42" | ≦30mm | ≦100mm | 10r/min |
1230 | 1066-1230 | 42"-48" | ≦30mm | ≦100mm | 10r/min |
1430 | 1230-1430 | 48"-56" | ≦30mm | ≦100mm | 8r/min |
