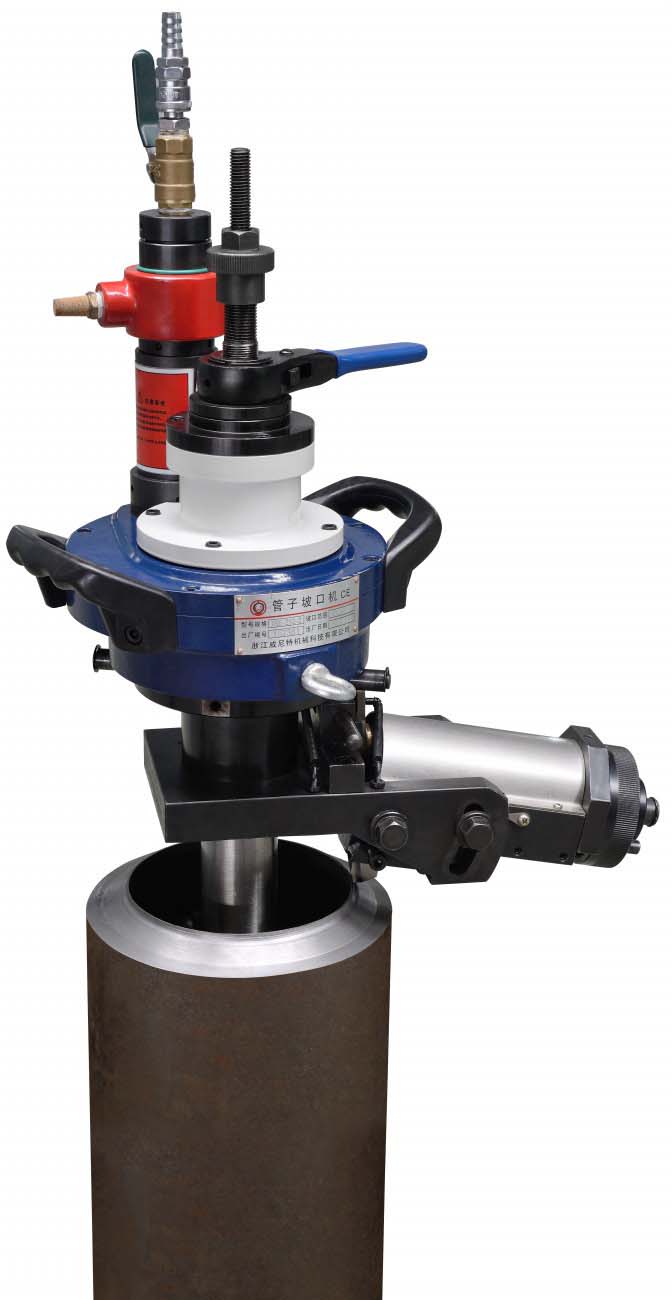

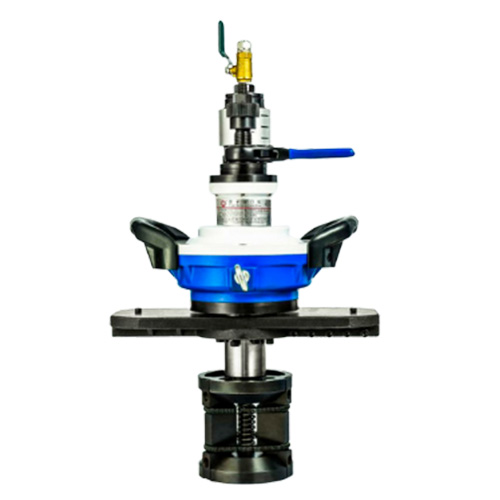

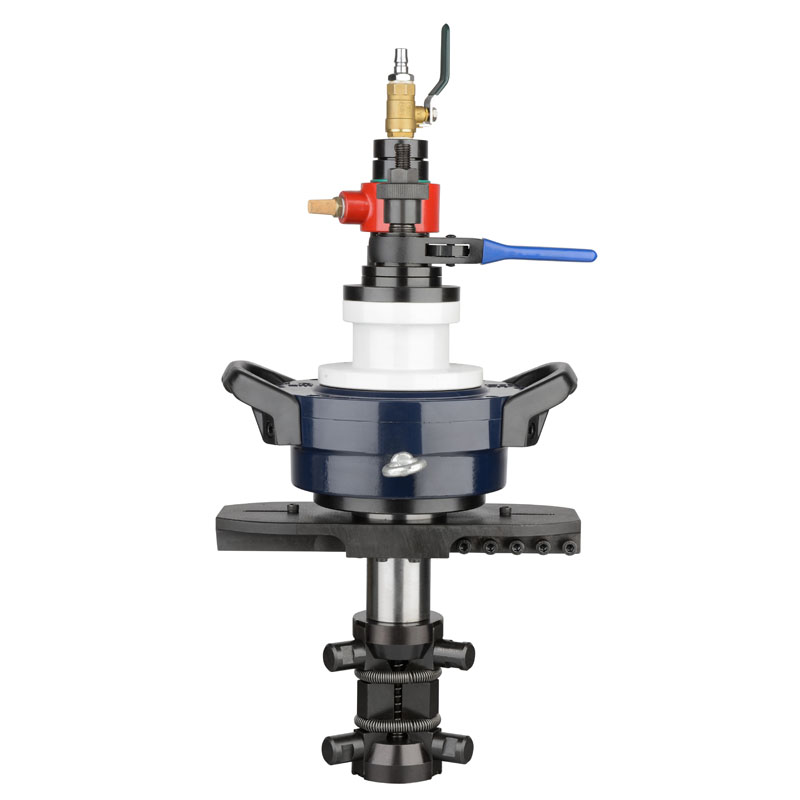

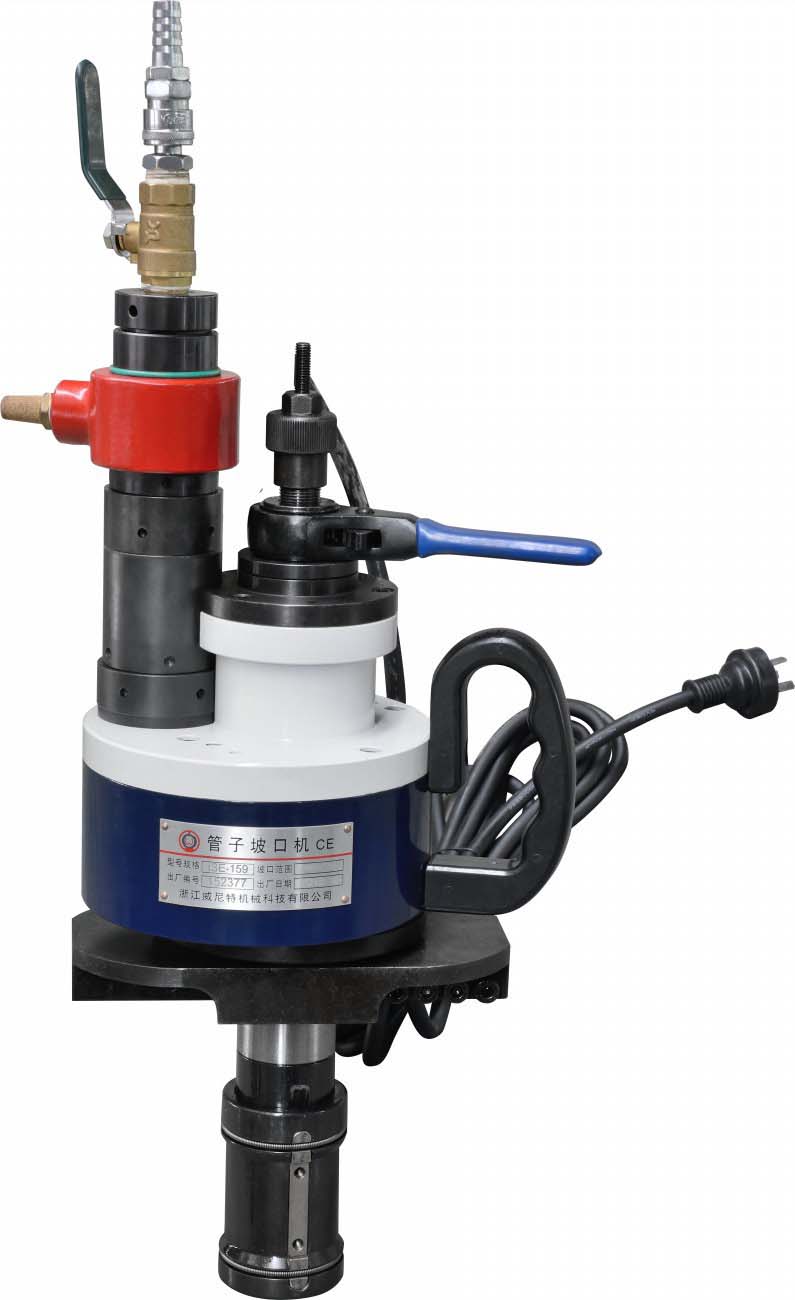

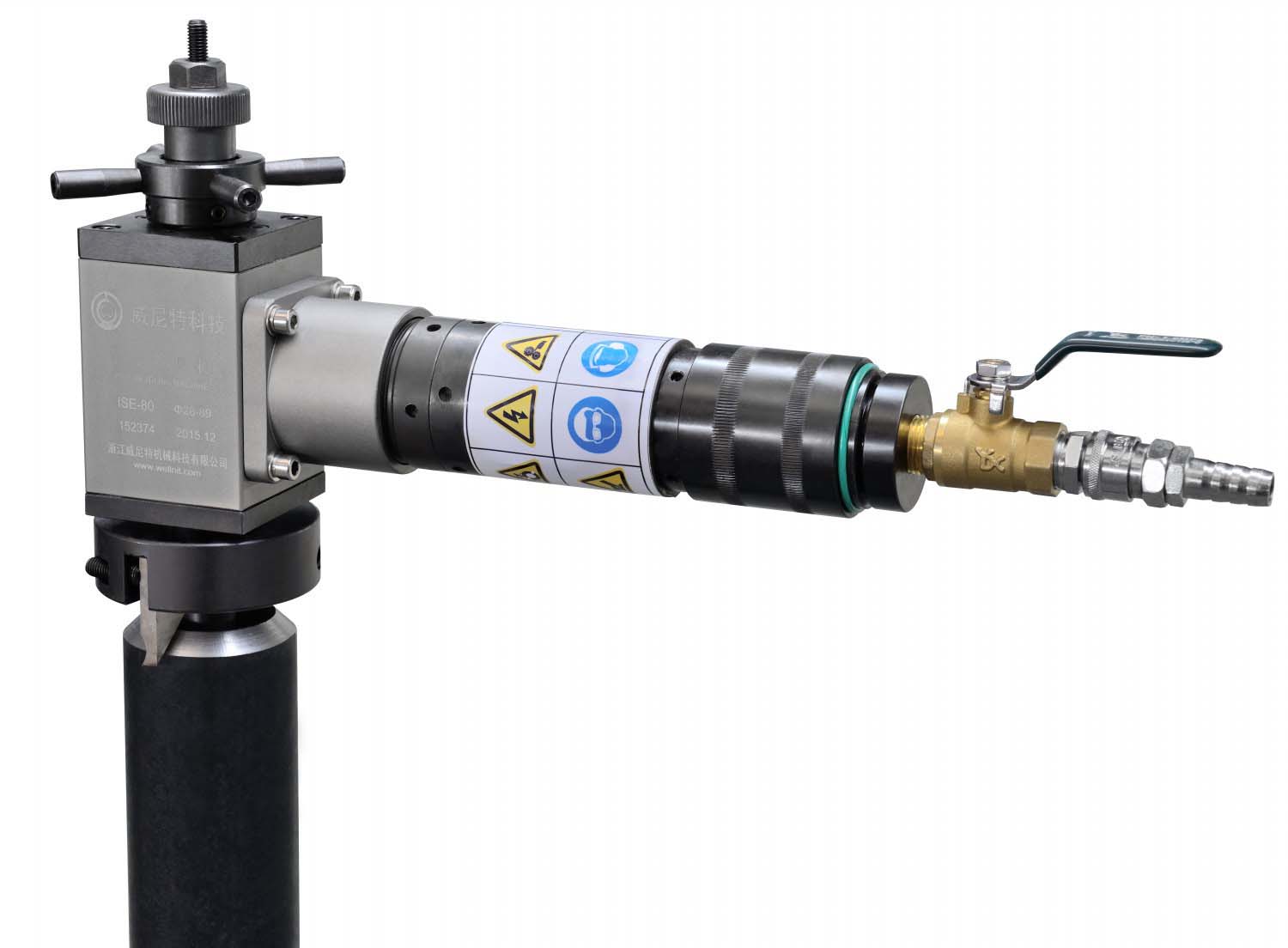

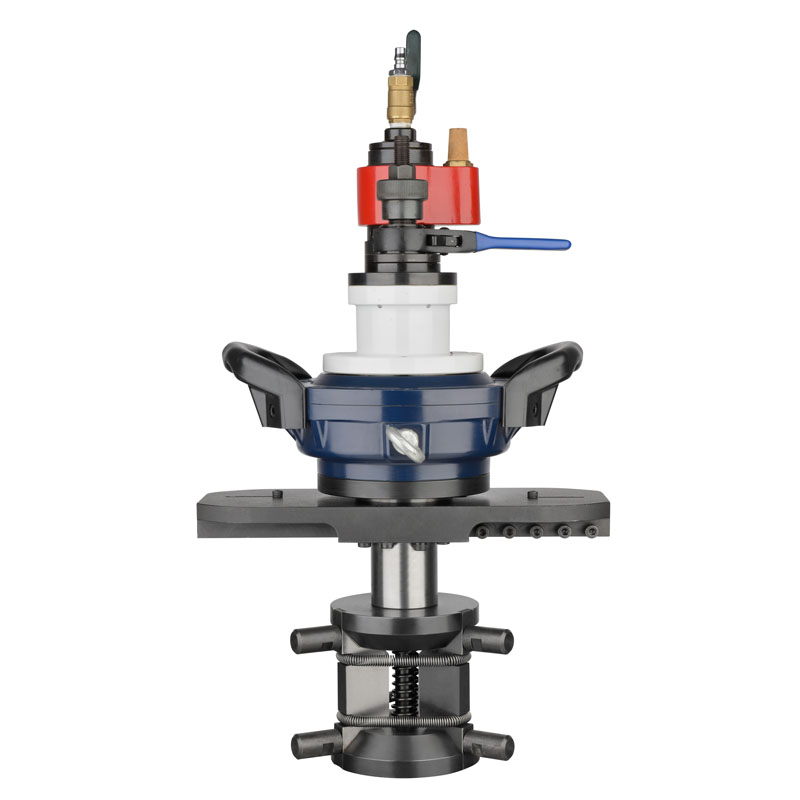

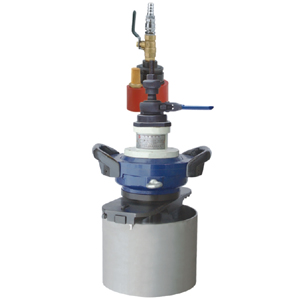

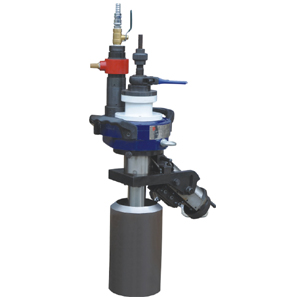

ID-Mounted internal expanding type pneumatic pipe beveler

Product model:ISP

Processing caliber:φ18-φ850 1/2”-34”

Groove wall thickness:≤15-≤75

The knife dish speed:60r/min-9r/min

Product material: chrome molybdenum steel, low temperature steel, titanium alloy steel, etc.

Product standards:GB/T 156;GB 1002;GB 2099.1;GB/T 5013.4;GB/T 5023.5;GB 5226.1;GB/T 11918;GB/T 13277.1;GB 16710


ISP Internal expanding type pneumatic pipe facing machine overview:

This series machine adopts pneumatic motor drive, mainly is suitable for the explosive, fire and other places, there are 0.6 0.8 MPa air can get a job, feed has scale on the handwheel, can choose any Angle cutter installation tools.Have fast when tight, automatic positioning, easy to install, use safe to rely on, etc.


ISP Internal expanding type pneumatic pipe facing machine main products performance:

This series machine adopts pneumatic motor drive, bevel gear drive, the tertiary planet gear reducer reducer;Suitable for explosive and dangerous workplaces such as fire prevention.Good rigidity, high precision, convenient operation simple, safe and reliable use.


ISP Internal expanding type pneumatic pipe facing machine product features:

1.For carbon steel, stainless steel, alloy steel pipe processing, such as

2.Completely cold, a bit does not affect the pipe processing,

3.Processing efficiency is high, the clamping at a time synchronization is complete cutting, groove,

4.Machining high precision, high quality, precise size, high smoothness, processing face perpendicular to the pipe axis,

5.Can be boring head assembly, tube groove or boring processing.


ISP :

This function to satisfy large diameter and thick wall pipe groove processing, using range is wide, not only can U, V type weld of pipe groove processing, but also after the butt welding of convex flange and flange for processing.Tool carrier is equipped with Angle scale, can choose any point of view, and is equipped with the function of feeding, simple operation, convenient.


ISP Internal expanding type pneumatic pipe facing machine structure:

1、Small radial clearance falls, light weight, suitable for complex environment, the space is little

2、Can install halved, this structure is suitable for the pipe ends are sealed or you can't remove the object,

3、Once clamping, it can be finished at the same time cutting and processing of groove.


ISP Internal expanding type pneumatic pipe groove parameters of beveling machine


ModelWorkingRange(ID-OD)Wall thicknessRotationSpeedAirPressureAirConsumption
ISP-30Ø18-301/2”-3/4”≤1560r/min0.6Mpa900L/min
ISP-80Ø28-891”-3”≤1550r/min0.6Mpa900L/min
ISP-120Ø40-1201,1/4”-4”≤1538r/min0.6Mpa900L/min
ISP-159Ø65-1592,1/2”-5”≤2035r/min0.6Mpa1000L/min
ISP-252-1Ø80-2733”-10”≤2016r/min0.6Mpa1000L/min
ISP-252-2Ø80-273≤7516r/min0.6Mpa1000L/min
ISP-352-1Ø150-3566”-14”≤2014r/min0.6Mpa1200L/min
ISP-352-2Ø150-356≤7514r/min0.6Mpa1200L/min
ISP-426-1Ø273-42610”-16”≤2012r/min0.6Mpa1500L/min
ISP-426-2Ø273-426≤7512r/min0.6Mpa1500L/min
ISP-630-1Ø300-63012”-24”≤2010r/min0.6Mpa1500L/min
ISP-630-2Ø300-630≤7510r/min0.6Mpa1500L/min
ISP-850-1Ø490-85024”-34”≤209r/min0.6Mpa1500L/min
ISP-850-2Ø490-850≤759r/min0.6Mpa1500L/min



ISP Internal expanding type pneumatic pipe facing machine standard configuration:

1、Calibration clamping system,

2、Customized storage box,

3、Operating tools,

4、Product specification,

5、Qualified inspection report。
